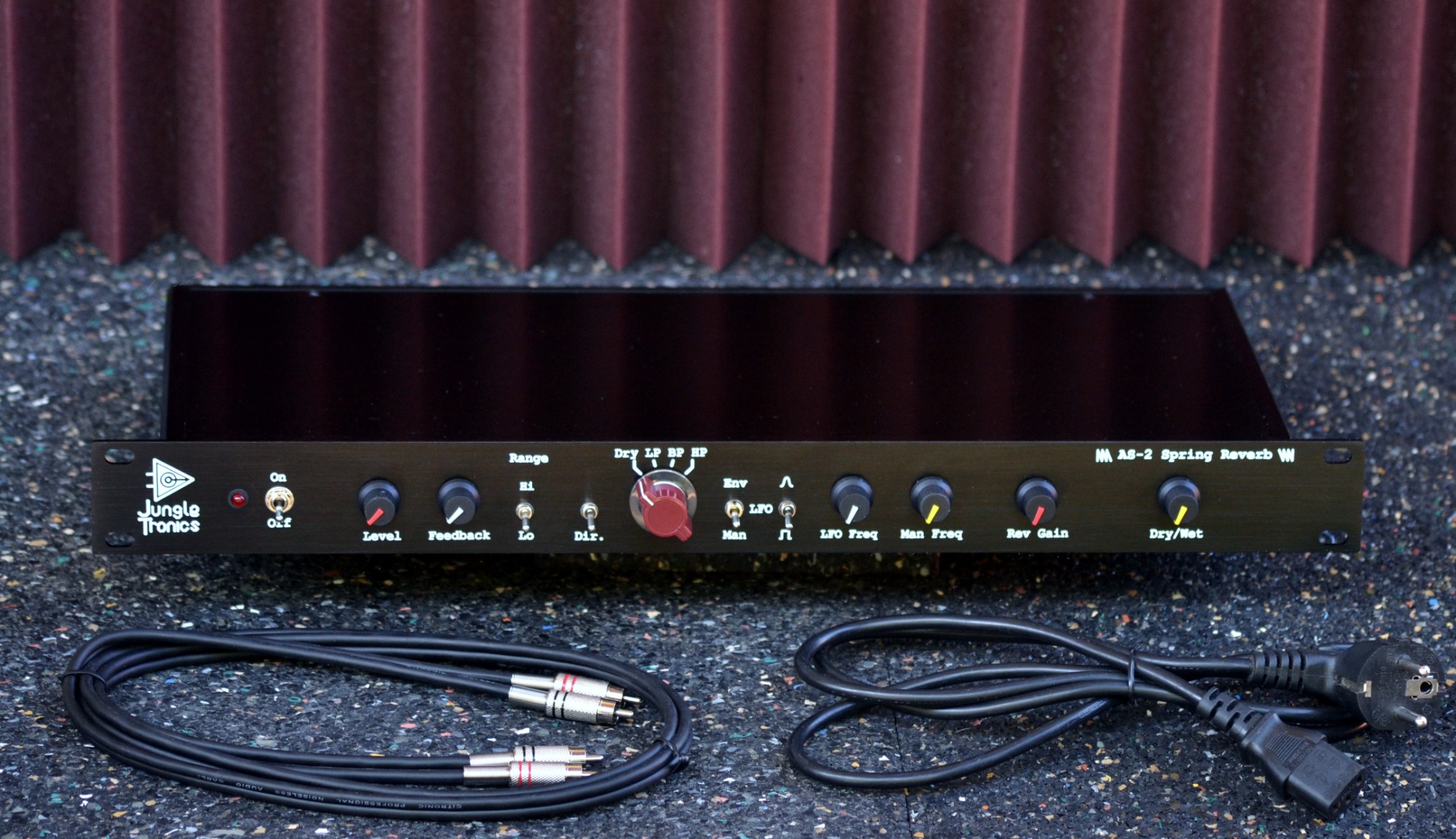

AS-2 Spring Reverb & Multimode Filter

Discover our first product the AS-2 Spring Reverb & Filter.
A wonderfull combination of a multimode filter and a spring reverb amp by Jungletronics Audio. The multimode filter is capable of High Pass, Band Pass and Low Pass, controlled either manually, by a LFO or by the input signal envelope. The filter lets you precisely shape your sound before sending it through the spring tank to get the best reverberation effect.

AS-2 Spring Reverb & Multimode Filter

By combining an analog multimode filter and a spring reverb amplifier, the AS-2 Analog Spring reverb will get you the unique spring reverb sound that you are looking for.
Mounted in a 19inch rack, the multimode filter lets you shape the input signal in various ways, low pass, band pass and high pass, while the center frequency is either controlled manually, by the internal LFO oscillator or by the input signal envelope . Then the reverb tank amplifier circuit will  get you the magic sound of spring reverb.

The standard version of this unit include an outboard reverb tank connected through an RCA. The RCA and AC power cables are also included.

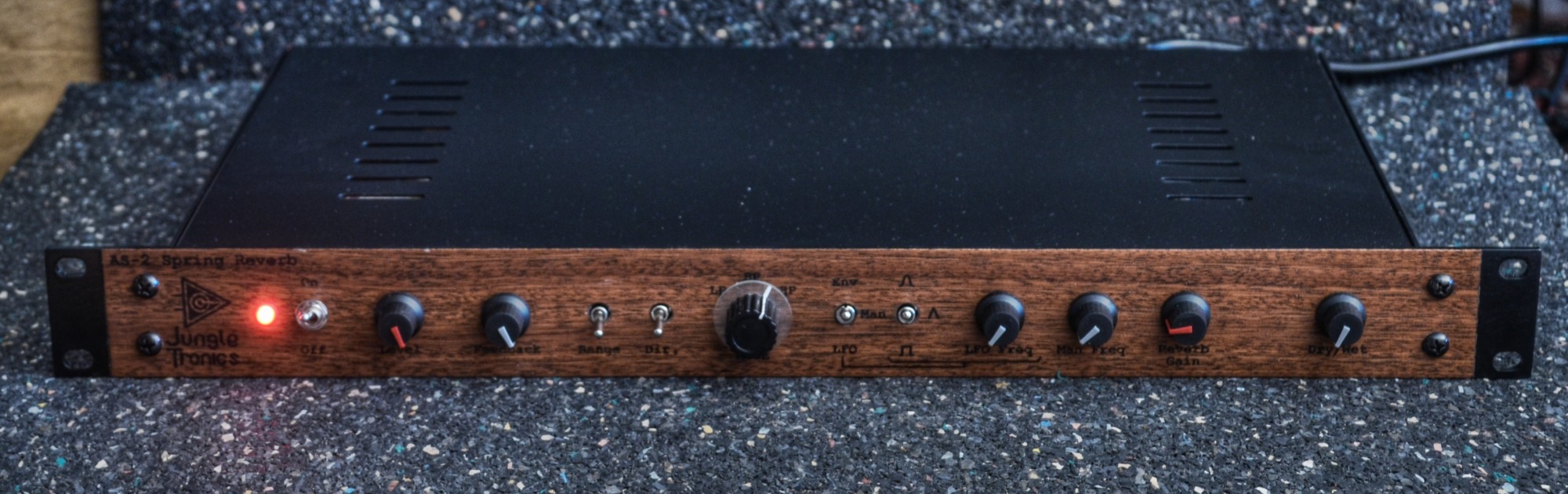

Inboard mounted tank reverb and wooden engraved front panel, can be made on demand, please, get in touch with the Jungletronics Audio team. In case of an inboard mounted reverb tank, a special care is given by shielding the tank from electromagnetic fields inside the unit.


In stock

AS-2 Unit + Power Cord + RCA cable + Spring tank   =>  500€
AS-2 Unit + Power Cord + RCA cable =>  450€

Sound test with a Type 8 Long decay spring tank.

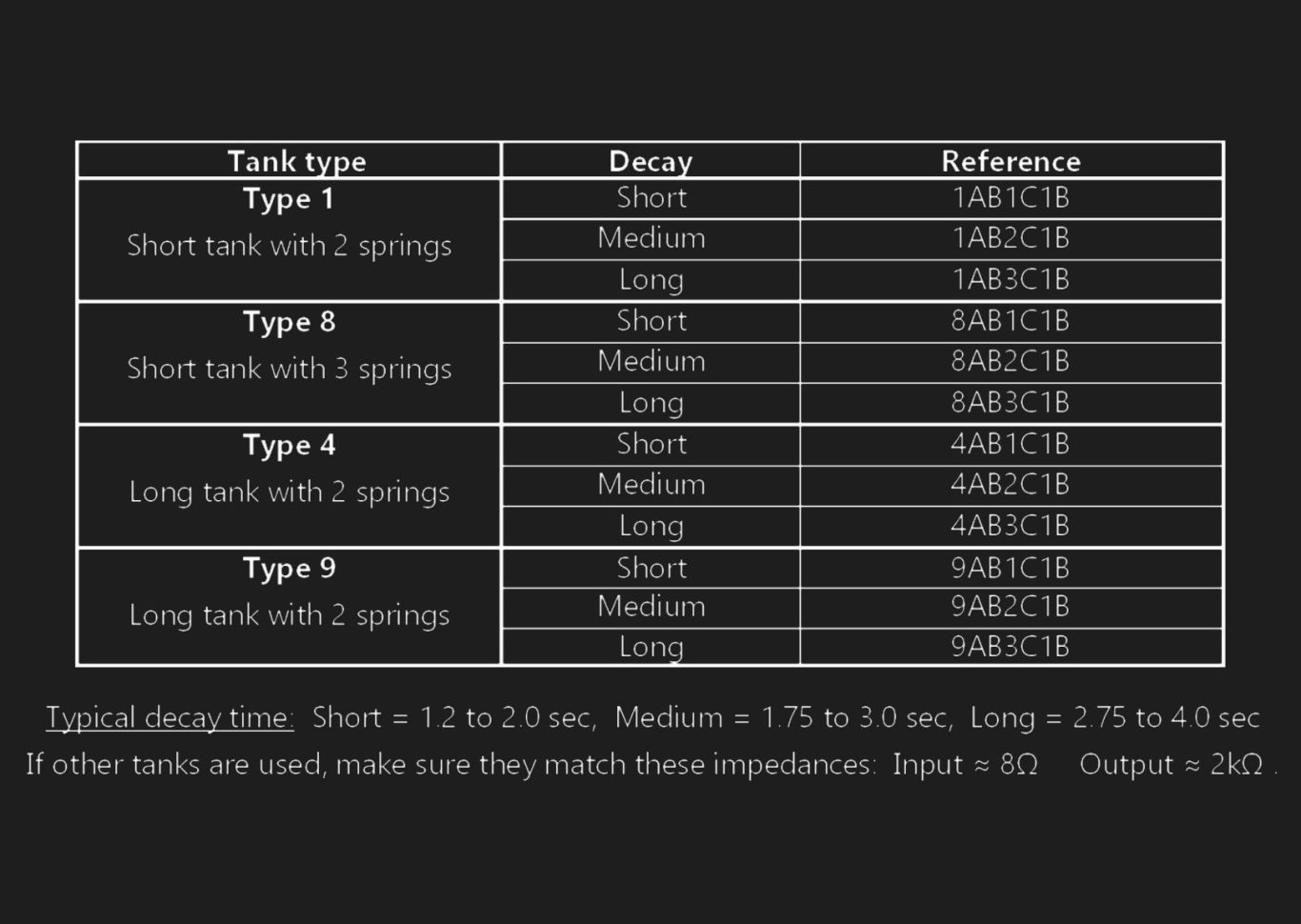

Compatible Reverb Tanks

Specifications :

Input:  Balanced 3 pole XLR, 1/4" TRS Jack, (TS Jack, Unbalanced)
              Imp : 600Ω

Output:  Balanced 3 pole XLR
               Imp : 10kΩ

Power Supply:  220-240 VAC, 50-60 Hz, IEC Connector                           (250mA Fused)
                                  (Also available in 115V)

Dimensions (HxWxD):  45 x 483 x 200  mm  ( 3,8 Kg)
